Ringbot: The Monocycle with Legs

In the realm of science fiction, we’ve envisioned a future where robots and machines perform tasks autonomously. The Ringbot, developed by researchers at the Kinetic Intelligence Machine (KIM) Lab at the University of Illinois Urbana-Champaign, brings us one step closer to that reality. Ringbot: The Monocycle with Legs, challenges traditional design by utilizing hidden internal modules for superior balance and maneuverability. This monocycle robot prototype replaces traditional driving components with a clever twist: two compactly mounted legs inside its slim wheel body.

Contents

How It Works The Ingenious Design of RingBot Potential Applications of RingBot Potential Impact Conclusion

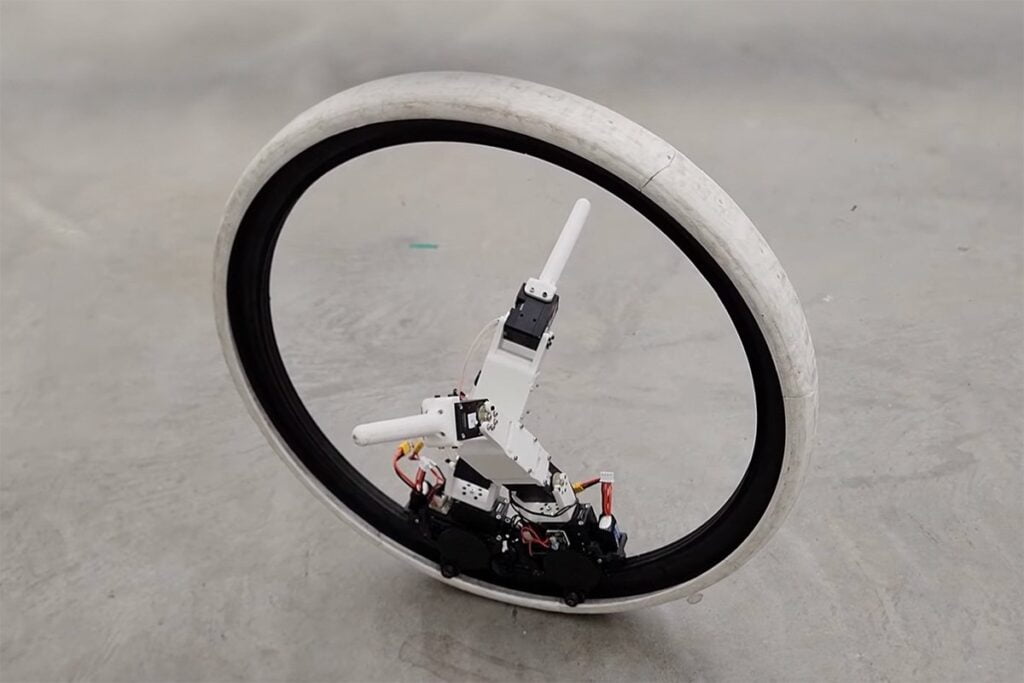

source: startupselfie.net *Inspired by Star Wars, the monocycle Ringbot rolls on a round body, and steers deftly with its extendable legs. Images courtesy University of Illinois Urbana-Champaign*

One such groundbreaking creation is the ‘RingBot,’ a monocycle robot that rolls and balances with the help of two tiny legs. This fascinating robot is not only a marvel of engineering but also a testament to the future of autonomous mobility and robotic stability. In this blog, we’ll explore the design, functionality, and potential applications of RingBot, and see how it captivates onlookers with its unique balancing act.

How It Works

Dual Driving Modules
- The Ringbot features two independent driving modules nestled within its wheel. These modules control velocity and orientation, allowing the robot to move smoothly.
- Remarkably, the modules can even make full rotations inside the wheel when needed.
Balancing Act
- When the Ringbot loses balance and tilts to one side, its two legs come into play.
- These legs serve as support, helping the robot stand up independently without human assistance.
Autonomous Movement
- The Ringbot can travel at speeds exceeding three miles per hour (around five kilometers per hour).
- Crucially, it navigates without needing help for balancing or turning—thanks to its ingenious leg design.

The Ingenious Design of RingBot

RingBot is designed as a monocycle, which means it primarily operates on a single large wheel. What sets it apart from other single-wheeled robots is its ability to balance and maneuver using two small, retractable legs. RingBot’s internal “legs” keep it balanced, tackling tasks that would stump other monocycle robots.

Key Features:

1. Monocycle Structure

The core of RingBot’s design is its large, central wheel, which houses the primary driving mechanisms. This wheel allows RingBot to roll smoothly over various surfaces and provides a robust platform for its operations.

2. Two Tiny Legs

The two small legs attached to RingBot are not just for show. These legs play a crucial role in maintaining balance, especially when the robot is stationary or navigating uneven terrain. The legs can extend and retract as needed, ensuring stability and preventing falls.

3. Advanced Sensors and Gyros

Equipped with advanced sensors and gyroscopes, RingBot constantly monitors its orientation and adjusts its balance in real time. These sensors detect changes in the robot’s position and send signals to the control system to activate the legs or adjust the wheel’s speed and direction.

4. Autonomous Navigation

RingBot is capable of autonomous navigation, meaning it can move around without human intervention. It uses a combination of cameras, LIDAR, and other sensing technologies to map its environment, avoid obstacles, and find the most efficient path to its destination.

Potential Applications of RingBot

RingBot’s unique design and capabilities open up a wide range of potential applications across various industries:

1. Service and Hospitality: In hotels and restaurants, RingBot can serve as a mobile concierge or waiter, delivering items to guests and providing information. Its ability to navigate crowded environments makes it ideal for these settings.

2. Healthcare: RingBot can assist hospitals by transporting medical supplies, delivering medications to patients, and even aiding in telemedicine consultations. Its autonomous navigation ensures it can operate efficiently in busy hospital corridors.

3. Warehousing and Logistics: In warehouses, RingBot can automate the transportation of goods, reducing the need for human labor and increasing efficiency. Its ability to balance and maneuver in tight spaces is particularly beneficial in densely packed storage areas.

4. Home Assistance: As a personal assistant, RingBot can help with household chores, provide companionship, and even assist older people or disabled individuals with mobility and daily tasks.

@KIMLAB2020

Potential Impact

Imagine a cityscape where Ringbots silently glide through streets, minimizing space requirements and offering efficient transportation for solo travelers. While this prototype is just the beginning, it hints at a future where driverless modes of transportation become commonplace in urban areas.

Conclusion

The RingBot monocycle robot is a remarkable innovation in the field of robotics, demonstrating how advanced engineering and smart design can create versatile and functional machines. Its ability to roll, balance, and navigate using two tiny legs is not only a feat of technology but also a glimpse into the future of autonomous robots. As RingBot continues to evolve, its potential applications across various industries will undoubtedly grow, making it an exciting development to watch.

So, next time you see RingBot in action, take a moment to appreciate the intricate balance of technology and creativity that makes it possible for this monocycle marvel to roll and balance with such finesse.
